SP004449
Thương hiệu:
T-WOLF

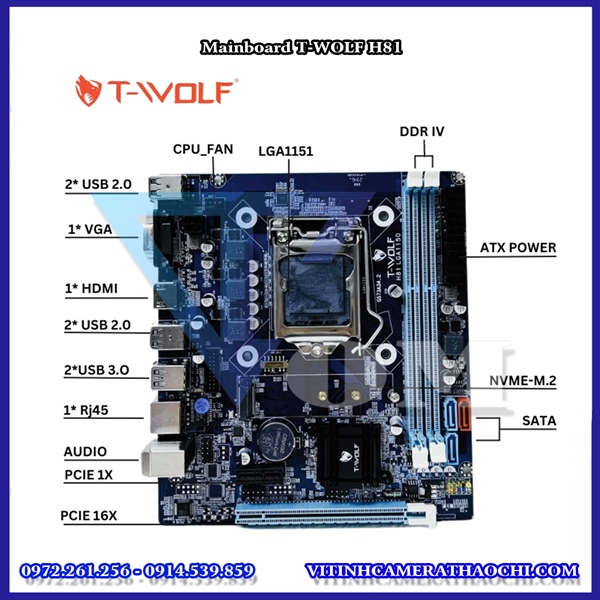

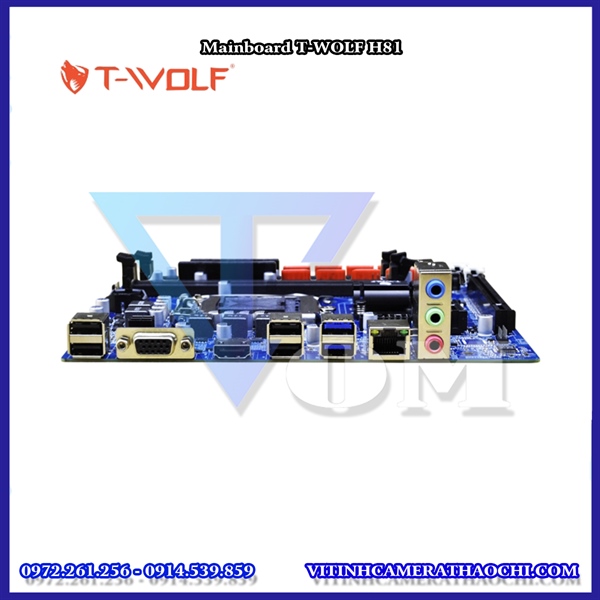

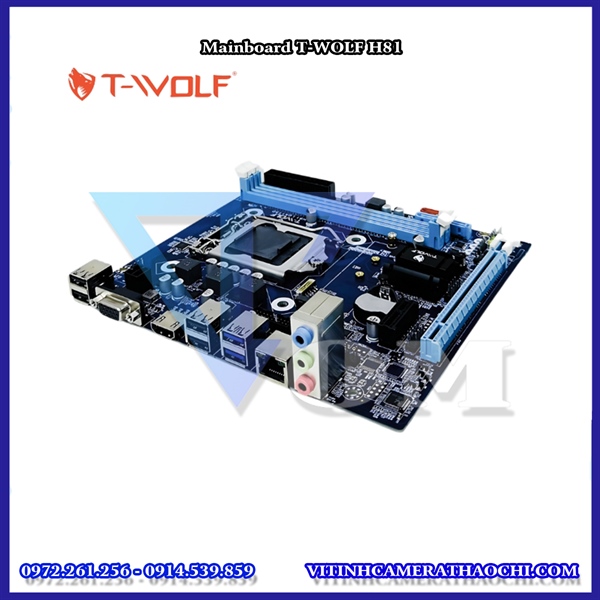

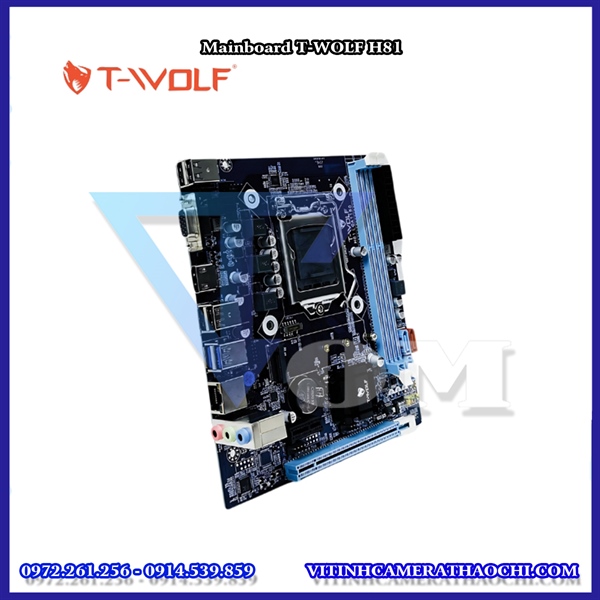

Mainboard T-WOLF H81
1,290,000đ
Mô tả chi tiết
Thông số kỹ thuật
| Thương hiệu | T-WOLF |
| Mã sản phẩm | TW-H81 |
| SKU | 686860881 |
| CPU | Supports CPU Haswell Gen 4-5 |
| Intel 22nm CPUs (LGA1150) | |
| Chipset | Intel H81 Express Chipset |
| Memory | 2*240-pin DDRⅢ SDRAM slots |
| Memory up to 16GB | |
| Supports dual channal DDR3 1066/1333/1600 MHZ | |
| I/O interface | 4xUSB2.0 |
| 2xUSB3.0 | |
| 1x VGA port | |
| 1x HDMI port | |
| 1x RJ45 port | |
| 1x 3-in-1 Audio port(line in/line out/MIC in) | |
| Onboard interface | 1x 24-pin ATX power connector |
| 1x 4-pin ATX 12V power connector | |
| 2x USB connector, can support 4*USB 2.0 | |
| 1x F-AUDIO connector, 1x F-PANEL connector | |
| 1x F-SPEAKER connector, 1x FAN connector | |
| 1x LPC-DEBUG connector | |
| Integrated sound | Realtek ALC 6-channal HD Audio Codec onboard |
| Provides front audio interface | |
| Provides front stereo mic interface | |
| Storage | 1 x SATA 2.0 (3GB/s) ports,2 x SATA 3.0 (6GB/s) ports |
| Integrated lan | Realtek 100/1000 Mbps LAN onboard |
| Expansion slot | 1x PCI Express x16 slot |
| 1x PCI Express x1 slot | |
| 1x NVME/NGFF slot | |
| Dimension | Micro-ATX architecture(17*19cm) |
| Driver | https://drive.google.com/file/d/17jgoVKvWWQHS-0E06yhvZuUJLyCDUBXD/view?usp=sharing |
