SP004157
Thương hiệu:
T-WOLF

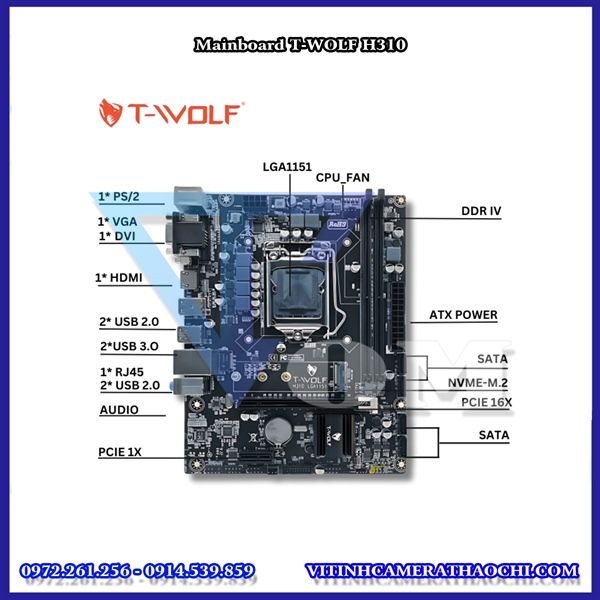

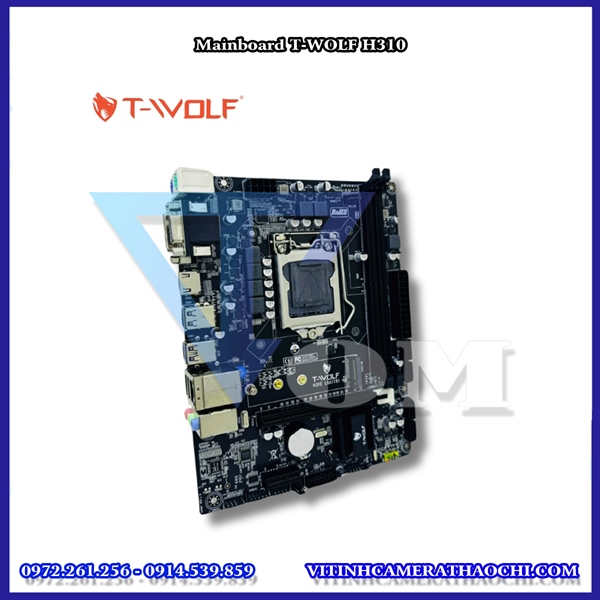

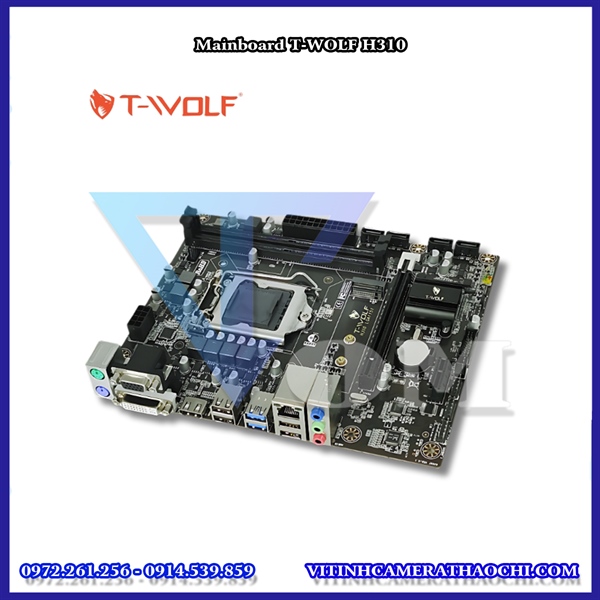

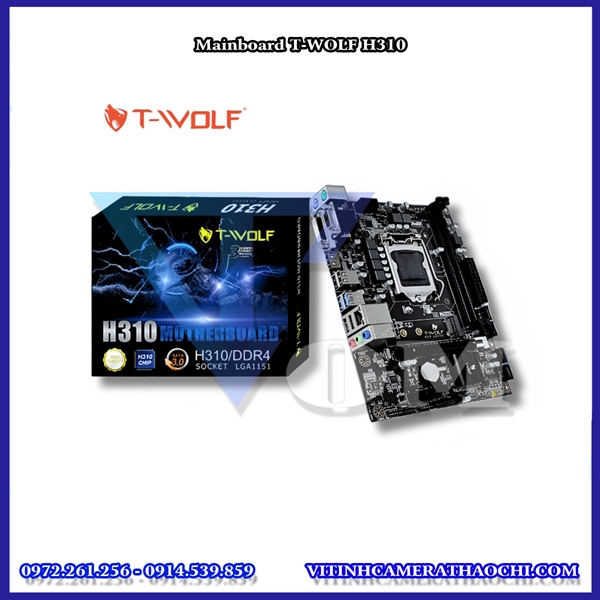

Mainboard T-WOLF H310
1,290,000đ
Mô tả chi tiết
Thông số kỹ thuật
| Thương hiệu | T-WOLF |
| Mã sản phẩm | TW-H310 |
| SKU | 686868310 |
| CPU | Supports 8/9rd Gen(lvy Bridge). CPU (LGA1151) |
| Chipset | Intel H310 Express Chipset |
| Memory | 2*288-pin DDR4 SDRAM slots up to 32GB |
| Supports DDR4 2666/2400/2133 memory | |
| I/O interface | 1xP/S2 keyboard port,1xPS/2 mouse port |
| 1xDVI port/1xVGA port/1xHDMI port | |
| 4xUSB2.0/2XUSB3.0/1xRJ45 port | |
| 1×3-in-1 Audio port(line in/line out/MIC in) | |
| Onboard interface | 1×24-pin ATX power connector/1×8-pin ATX 12V power connector |
| 2xUSB connector, can support 2*USB2.0 & 2*USB3.0 | |
| 1xF-AUDIO connector/1xF-PANEL connector | |
| 1xF-SPEAKER connector/2x FAN connector | |
| 4xserial SATA 6Gb/s connector port | |
| 1xLPC-DEBUG connector | |
| Integrated Sound | Realtek ALC 6-channal HD Audio Codec onboard |
| Provides front audio interface | |
| Provides front stereo mic interface | |
| Integrated lan | Realtek 10/100/1000 Mbps LAN onboard |
| Expansion Slot | 1xPCI Express x16 slot, 1xPCI Express x 1slot/1xNVME connector |
| Dimension | Micro-ATX architecture(17*21cm) |
| Driver | https://drive.google.com/file/d/1vNUWTcHJQMvWeggWp6UfYv-f-GzSbm-U/ |
